PRODUCT DETAILS

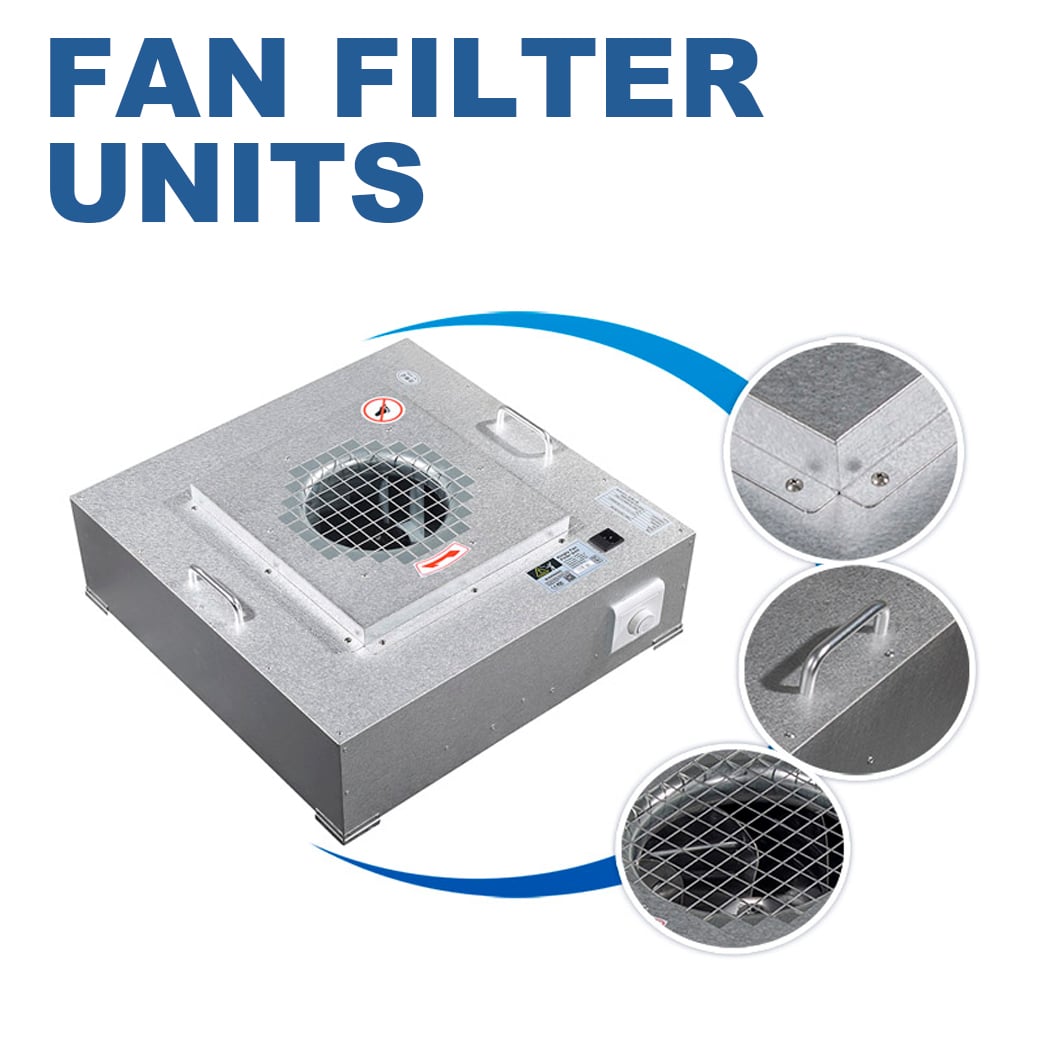

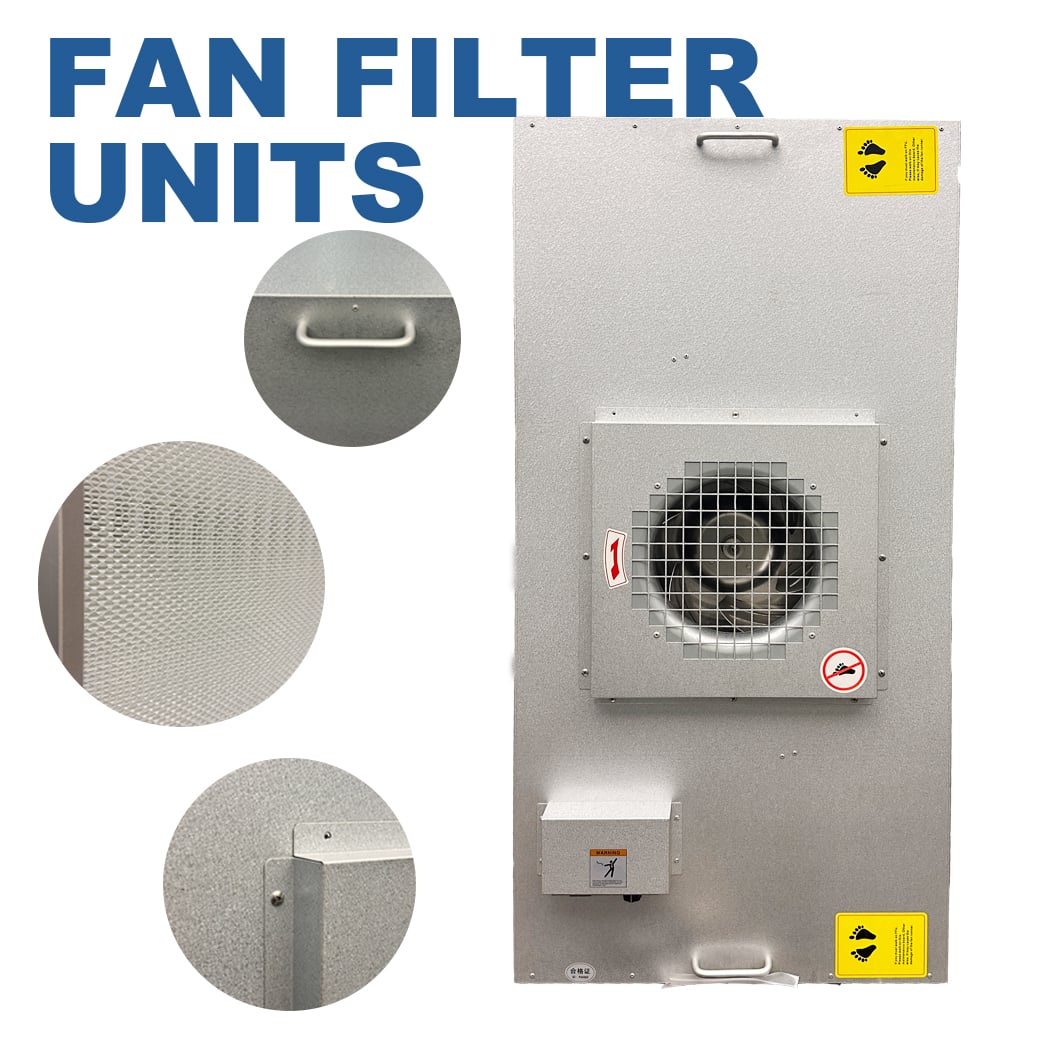

FFU (Fan Filter Unit)
FFU is a self-contained, plug-and-play air purification system designed to deliver high-efficiency filtration for cleanrooms, labs, and controlled environments. It integrates a high-performance fan, HEPA/ULPA filter, and durable housing, providing stable, uniform airflow to maintain particle-free spaces.
Key Features & Advantages
Superior Filtration Performance.
Energy-Saving & Quiet Operation.
Plug-and-Play Design.
Stable Airflow Control.
Durable & Easy Maintenance.
Main Specification for FFU
Dimensions(L*W*H) |
1175*575*350mm,1175*875*350mm,1175*575*350mm,Customized. |
|||
Air Velocity |
0.45m/s |
|||
Filter |
HEPA≥99.995%@0.3micron or ULPA≥99.995%@0.12micron |
|||
Noise |
≤65db |
|||
Power |
220V,50Hz |
|||
Material |
SS304/Powder Coated Galvanized Steel |
|||
Controller |
Speed adjustor/Speed Indicator |
|||
-

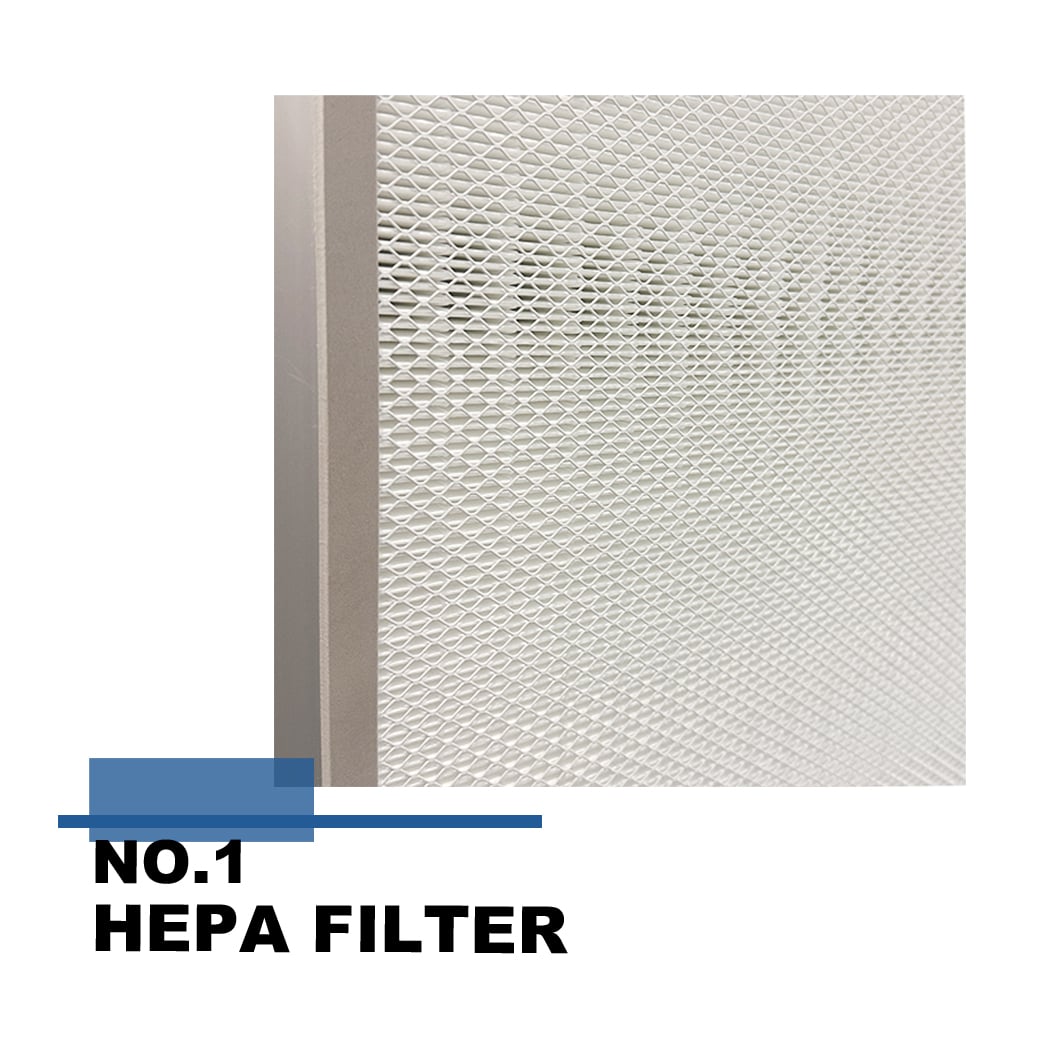

1. Hepa Filter
-

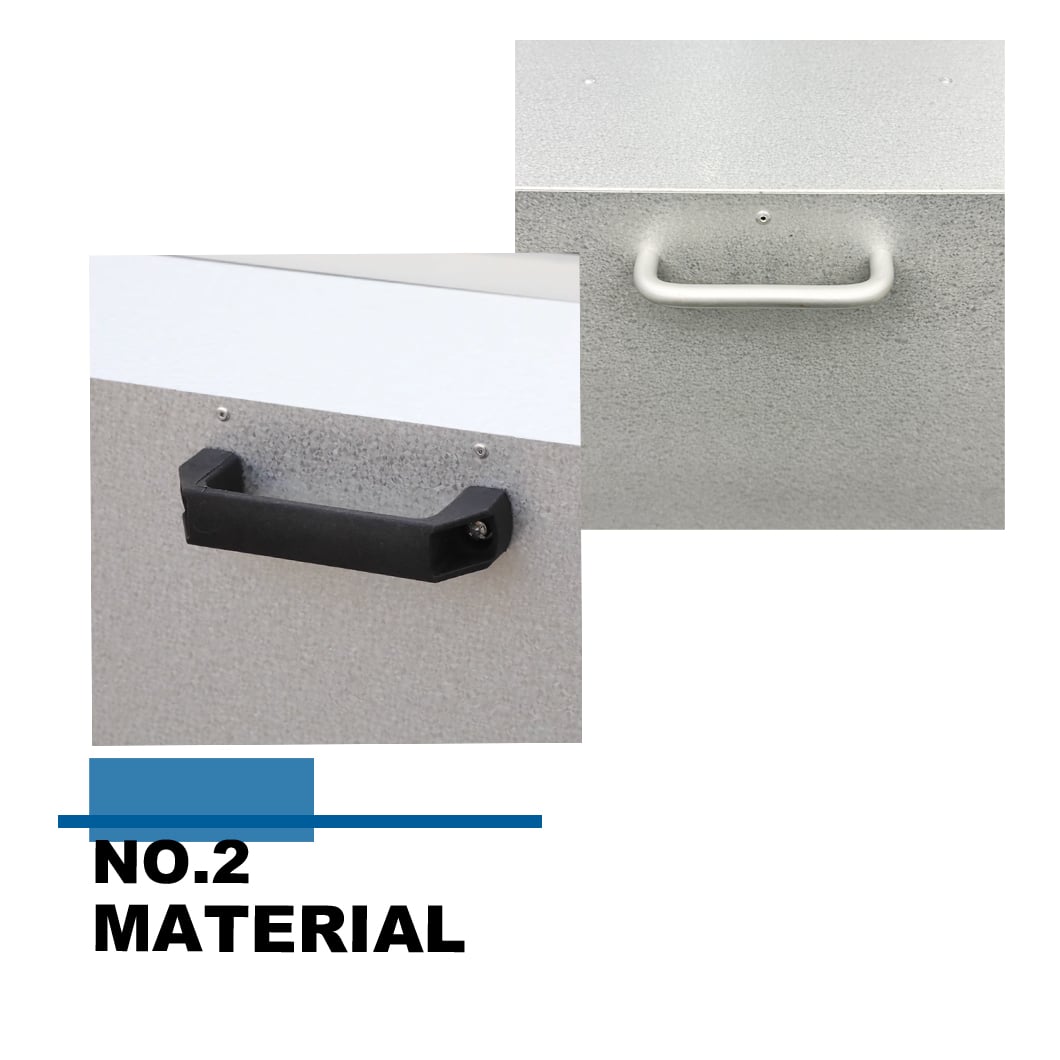

2. Material
-

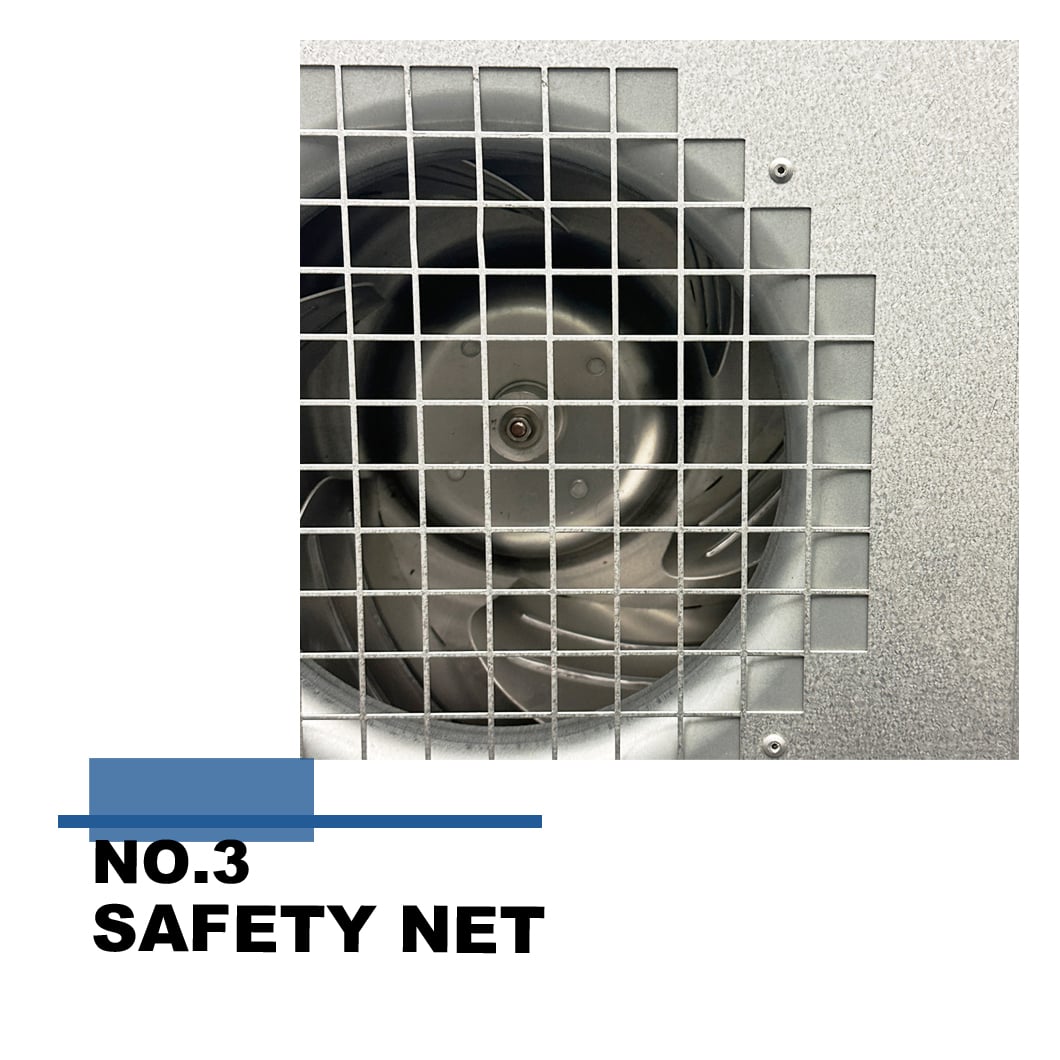

3. Satety Net
-

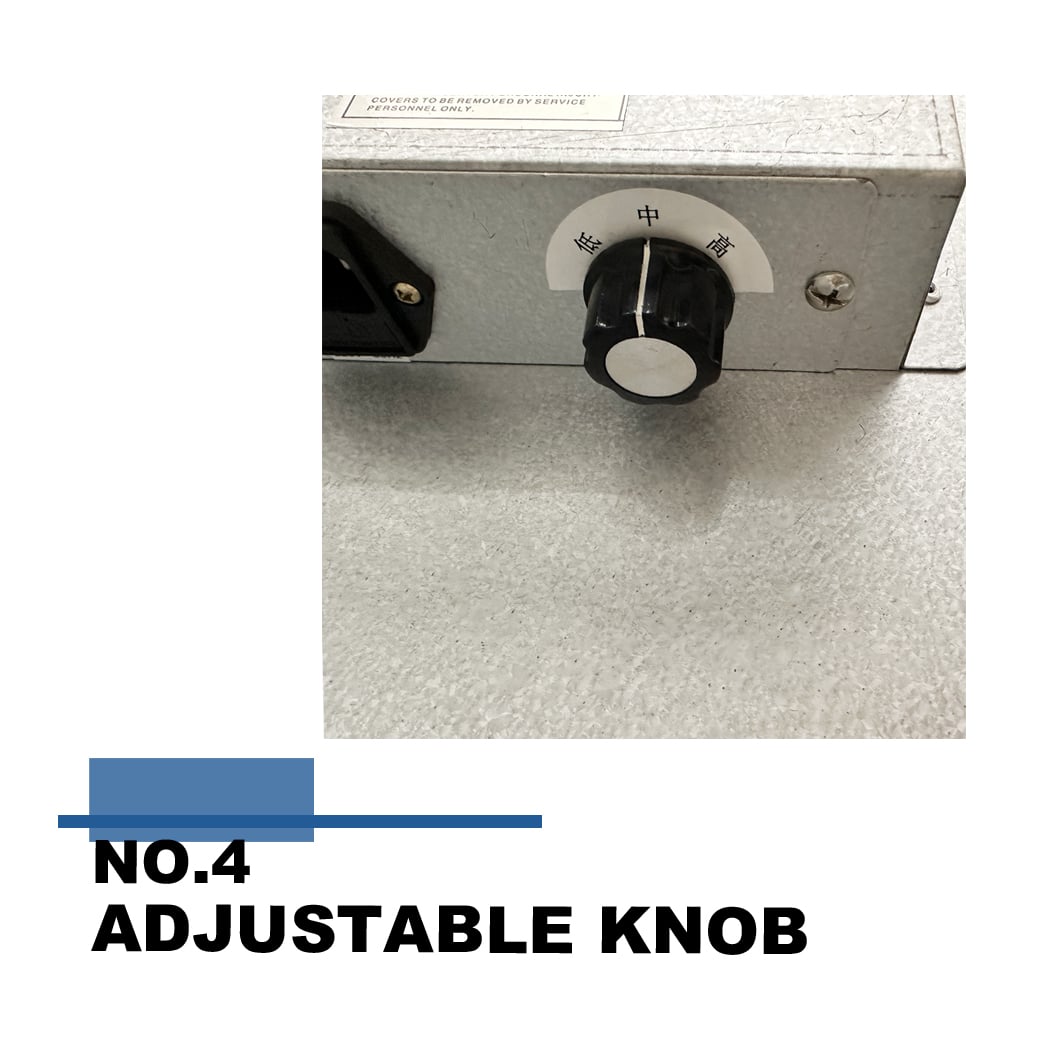

4. Adjustable Knob
Intelligent Control System: Upgrade Cleanroom Management
An optional intelligent group control system is available, supporting both individual and regional intelligent control modes. Through the host and PC terminals, real-time monitor the operating status of all FFUs and intuitively view wind speed and energy consumption data. The system dynamically adjusts the parameters of zoned FFUs based on cleanliness sensor data, balancing purification efficiency and energy-saving needs, and is suitable for large-scale cleanrooms.
Wide Applications Across Multiple Industries
Deeply applied in precision industries such as semiconductor manufacturing, liquid crystal display, and electronic component production; suitable for places with strict cleanliness requirements including biopharmaceuticals, food processing, and hospital operating rooms. It can independently create local Class 100 clean areas, be combined into ultra-clean production lines, or assist in manufacturing clean transfer cabinets and storage cabinets, helping to quickly build standard-compliant clean spaces.
Maintenance Tips
Regularly check filter resistance and replace it promptly when there is an abnormal increase. The conventional service life of HEPA/ULPA filters is 1-3 years, adjusted according to the operating environment.Avoid frequent start-stop of the equipment. Keep the surrounding air clean during operation to reduce impurities that accelerate the wear of fans and filters.Clean the device shell regularly and cut off the power supply before maintenance to ensure operational safety.
Customization Services
If you need special dimensions, materials, filtration levels, or control system configurations, please feel free to contact us. We will tailor an exclusive FFU purification solution for you!
